1、 Industry Status and Technological Evolution

The Chinese french fry processing equipment manufacturing industry has jumped to the top tier in the world. According to statistics from the China Food and Packaging Machinery Industry Association,In 2023, the market share of domestic french fry production lines will exceed 75%, and the annual growth rate of equipment exports will remain above 18%. Intelligent equipment suppliers, represented by domestic equipment manufacturer Shanghai Yunwang, have successfully developed a fully automatic French fry production line that meets the standards of international catering giants such as KFC and McDonald's through introduction, absorption, and innovation. This article will systematically explain the technological connotation of modern French fry manufacturing from three dimensions: deconstruction of production process, breakthroughs in key technologies, and industry development trends.

2、 Technical analysis of the entire process of industrial production

（1） Raw material standardization processing system

1. Raw material selection system

variety screening： Innovator (commonly known as“); Mackenzie One”）High dry matter such as Burbank and Sharboti（22% -24%) and low reducing sugar (0.1% -0.3%) preferred potato varieties,It is an ideal raw material for producing high-quality French fries.

agronomic traits: Single fruit weight150-300g， The depth of the bud eye is less than 2mm, the coefficient of variation of dry matter is 5%, and the mechanical damage rate is less than 1%.The influence of agronomic traits on product appearance and color is crucial.

2. Clean the pre-treatment section

- Cleaning of sinking stones：utilizePrinciple of centrifugal settlingCompared with water flow impact technology, it can effectively separate impurities such as sediment and gravel in materials,It can also remove large foreign objects such as stones and bricks. Produced by Shanghai YunwangThe stone sinking cleaning machine integrates three technologies: dry cleaning, cyclone stone sinking, and water washing, significantly reducing production costs while achieving water-saving potato cleaningMore than 50%, with a impurity removal rate of over 99%.

- Steam peeling machine system：

Steam parameters：1.6 MPa

Peeling efficiency：3-15t/h

Peeling lossCompared to traditional mechanical peeling, the loss of peeling is as high as15%, steam peeling generally ranges from 4% to 7% (with slight differences due to potato quality and storage time).

Technical Features：Shanghai YunwangBLAST-VENT technology achieves rapid pressure release in 0.5 seconds,Significantly reduce skin loss and lower the curing cycle toBelow 1mm.Equipped with intelligent pressure control system（IPC can achieve± 0.01MPa pressure fluctuation control.

（2） Core processing technology module

1. Precise cutting

Hydraulic cutting technology：The waterjet cutting machine consists of a power system, a water flow system, and a cutting module, which can cut materials into shapes such as strips, sheets, and potato corners. It has the characteristics of fast cutting speed, low material loss, easy blade switching, and flexible wire assembly. At present, mainstream suppliers in the market include Coreo from EuropeTummers， And domestic manufacturers such as Shanghai Yunwang.

power system: United StatesCornellThe Cornell material pump and the Dutch Packo material pump are internationally recognized as top students, with strong thrust, smooth flow channels, and minimal damage to materials.

Cutting moduleThe mainstream product is the United StatesUrschelThe stumabo cutting module (blade head and blade) under the umbrella of Yousuo and Belgian FAM, especially their blade performance, achieves an organic balance of toughness and rigidity, and the cut French fries are smooth and even, with almost no feathering phenomenon.

Cutting specifications：6× 6mm to 12× 12mm adjustable,And products such as steak potatoes and potato chips.

twomechanical cutting：

The excellent representative of mechanical cutting machine isUnited StatesUrschelYouso and Belgian FAM have a high market share for their 3D cutting machines.

Comparison of advantages between the two:For mainstream French fries in the market, waterjet cutting has higher cutting efficiency and significant advantages in terms of production capacity, appearance, and yieldThe cut French fries are smooth and flat, with almost no feathering phenomenon. Mechanical cutters are superior in terms of product pattern and flexibility, while waterknives are inferior in their specialties such as corrugated potatoes and potato grids. Therefore, larger french fry factories will be equipped with both water knives and mechanical knives to meet market demand.

2. Thermal control system

Gradient blanching processFrench fries are often equipped with two-stage blanching equipment in order to cope with complex raw materials in different states through more flexible blanching temperature and time control. During the blanching process, uniform temperature and sufficient contact are the key to ensuring uniform blanching of the finished product. Therefore, the spiral blanching machine has emerged. It achieves uniform temperature before and after through reasonable thermal distribution and water flow regulation, and can keep the French fries in a suspended state, fully in contact with the water flow, and uniformly heated.

temperature curve：Around 90 ℃ (front section)→ Around 75 ℃ (later stage)

time controlDepending on the quality of the potatoes, there may be significant fluctuations in time, ranging from a few minutes to nearly as long30 Minutes.

3. Optimization of frying kinetics

Intelligent Frying UnitIn the modern production process of French fries, traditional electric heating or direct fired fryers are difficult to meet the production and cost control needs of fries. Therefore, through the boiler+Heat exchangers, frying machines that use thermal oil or steam as a medium, are more common in the french fry processing industry. In recent years, Shanghai Yunwang has taken the lead in introducing steam based deep fryers in China, which are safer and more efficient. The fatal flaw of the thermal oil fryer is that once leakage occurs, it cannot be detected in a timely manner, which can easily contaminate the product and bring serious food safety hazards. The medium of the steam fryer is food grade steam, so there are no worries.

Oil Quality Management System:Equipped with a slag removal machine, pipeline oil filter, and filter press step by step filtration system, all-weather100% purification of edible oil, effectively removing impurities and extending its service life.

（3） Quality assurance system

1. Rapid freezing system

-Fluidized freezing:

Freezing temperature:-36 ℃ to -40 ℃

Freezing rate:18 minutes (center temperature -18 ℃)

Ice crystal size: ＜50μm

2. Intelligent packaging line

-High speed packaging system: automatic weighing, bag making and sealing, coding and marking

Packaging efficiency: toTaking 1kg packaging bags as an example, the speed can reach up to 100 bags per minute

3、 Key Technology Innovation Graph

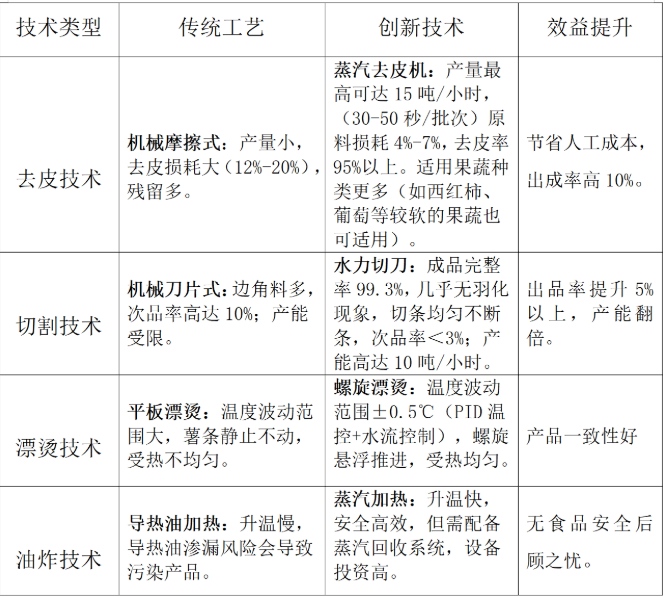

（1） Comparison of Core Technologies in French Fry Processing

（2） Electric field pretreatment technology

1. Pulse electric field system (PEF)

-Electric field strength: 1-3kV/cm

-Pulse frequency: 50-200Hz

Increased cell membrane permeability300%

Reduce cutting energy consumption47%

Decreased oil absorption rate during frying12%

industry leader: NetherlandsPulsemasterDedicated to pulse electric field technology（PEF）R&D and production areMcCain、SimplotWaiting for the company's preferred optionPEFSystem supplier. Currently, Shanghai Yunwang is actively seeking cooperation with them to accelerate the processPEFThe application and popularization of the system in small and medium-sized processing enterprises in China can enhance the industry's processing level.

（2） Intelligent control system

2. Digital twin platform

-Parameter collection: 2000+sensors for real-time monitoring

-Model construction: Production optimization algorithm based on deep learning

-Control accuracy: temperature± 0.5 ℃, humidity± 1.5%

4、 Outlook on Industry Development Trends

（1） Direction of technology integration

1. Clean energy application: Photovoltaic steam system reduces emissions by 45%

2. Water resource cycle: achieving zero discharge of process water

3. By product utilization: conversion of potato residue into dietary fiber with an extraction rate of 85%

（2） Intelligent upgrade path

1. Machine vision sorting: defect recognition accuracy of 99.9%

2. Blockchain traceability: Full process data is stored on the chain for verification

3. Digital twin factory: virtual debugging efficiency increased by 70%

（3） Thermal energy recovery technology

‌Waste heat capture system‌

In the high-temperature frying section（Install a gravity heat pipe waste heat recovery device (180-190 ℃) for instant heat exchange of oil fume exhaust gas (temperature 150-220 ℃), with a heat recovery efficiency of 78% -82%

Adopting a multi-stage heat exchange design:
Primary heat pipe pre heat exchange (exhaust gas cooled to 120 ℃)
Second stage finned tube bundle heat transfer (exhaust gas cooled to 70 ℃)
⊙ Three stage air preheating system (utilizing waste heat to preheat the incoming air)

‌Energy storage and reuse‌

Configure modular thermal storage tank (energy storage medium is phase change material), with a storage temperature gradient of50-150 ℃ thermal energy 1

Energy redistribution scenario:
Preheat the oil pot and add cooking oil (saving 12-15% energy)
Provide hot water at 85-95 ℃ for the blanching process
Winter workshop heating replaces traditional heat sources

Currently, China's french fry processing industry has been establishedThe complete technical system of "raw material selection - intelligent processing - green manufacturing - full traceability". With the deep penetration of new quality productivity such as 5G and AI, the industry is accelerating its transformation into a "black light factory". In the next three years, it is expected to form an intelligent production base cluster with an annual output of 2 million tons, promoting China's leapfrog development from a major potato chip manufacturing country to an intelligent manufacturing powerhouse.
